CMSV Visual Command Platform Brief Description For Live Streaming Body Cameras
CMSV Visual Command Platform supports physical and cloud server installation. When you have a server, you can install CMSV Server Software on your server and access it through the public IP to view the camera's image from anywhere in the world. The web version manages and creates camera and departmental permissions. The PC client can view live streaming scheduling, PTT two-way intercom, GPS real-time location positioning, remotely command the camera to record audio and video, and record videos to your command computer at a scheduled time to save. Remotely access camera images, audio and video and manually download the desired data. Everything is managed and created by you, and it is completely self-managed.

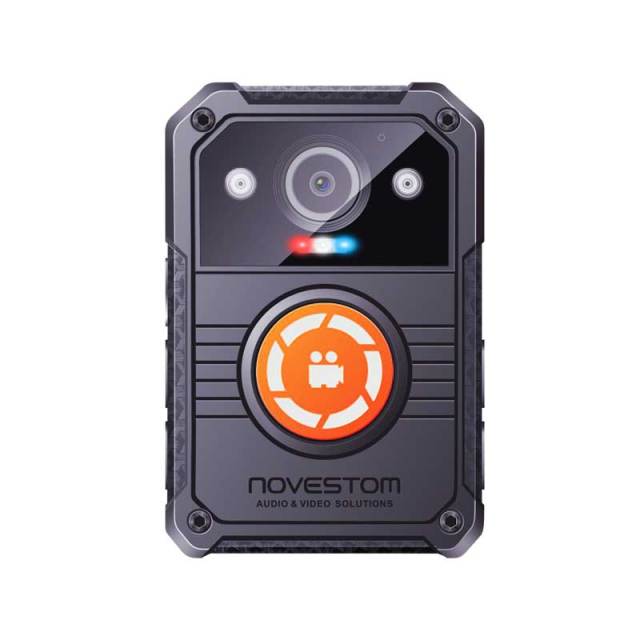

4G LTE Communication for NVS4-T live streaming Body Camera
The NVS4-T live streaming body camera supports standard Nano SIM Card. After inserting the 4G card, the camera will get 4G communication, and CMSV6 will show that the camera is online. At this time, you can remotely view 4G live streaming, and perform corresponding functions as CMSV Visual Command Platform Brief description.
Wi-Fi (AP/STA/RTSP/RTMP) Mode for NVS4-T live streaming Body Camera The NVS4-T live streaming body camera supports WIFI multi-protocol connection to view live streaming:
AP Mode: You can use cam manager software to set WIFI to AP mode to view RTSP live streaming via VLC or mobile APP.
STA Mode: Support RTSP LAN IP address to view live streaming, and CMSV Visual Command Platform to view live streaming and try out the features of CMSV Visual Command Platform Brief description. If you have a RTMP server, please set the camera to your server IP to view your live streaming.
Built-in GPS Module Tracking for NVS4-T live streaming Body Camera
The NVS4-T live streaming body camera has a built-in global high-precision GPS module. When the body camera is connected to a 4G or WIFI network, the camera will receive a GPS signal. You can check the real-time location and schedule work at any time through the CMSV Visual Command Platform. After your body camera records the video, you can also play back the video path and GPS coordinates through our dedicated GPS player.
PTT Intercom Communication for NVS4-T live streaming Body Camera
When the NVS4-T live streaming body camera is connected to the 4G or WIFI network, the camera can communicate with the CMSV Visual Command Platform. NVS4-T body camera supports two-way intercom and cluster intercom, fully meeting the needs of all dispatch work.
SOS Alarming To CMSV6 for NVS4-T live streaming Body Camera
The NVS4-T live streaming body camera supports SOS communication and CMSV6. When law enforcement officers encounter an emergency at the scene, they can try to press the SOS button to alert the command platform, and the command center platform will receive an SOS alarm prompt. In addition, the body camera also supports offline SOS red and blue indicator lights flashing alternately, alerting workers at night shifts, and has sound prompts.
Video/Photograph/Audio Recording for NVS4-T live streaming Body Camera
The NVS4-T live streaming body camera supports audio, video and photo functions, and has a built-in powerful image processing module. You only need to press the corresponding record button to record different types of data. The video supports 2K resolution (1440P, 1296P, 1080P, 720P, 480P), and has built-in EIS electronic image stabilization technology, making the image and video clearer. Let all law enforcement workers and users experience better recording effects.
The NVS4-T live streaming body camera supports video AES256 encryption technology. When you set the camera encryption, the recorded video will be protected by AES256 encryption. No one can play or edit the video. When you want to play the video, please use our dedicated audio and video player to perfectly solve the problem of video tampering.
Low Power Consumption, More Battery Life for NVS4-T live streaming Body Camera
The NVS4-T live streaming body camera built-in 4400mAh high capacity ion battery, without changing the battery design, super long standby, super large capacity battery, continuous 15hours of video, to ensure that law enforcement responsibility for a long time.
Button Function for NVS4-T live streaming Body Camera
1. 850nm Infrared x 2 | 2. SOS LED& White LED | 3. Microphone | 4. Record Button/NFC(Optional) | 5. Speaker | 6. LCD Screen | 7. Left Button | 8. Return Button | 9. Menu /Confirm Button | 10. Right Button | 11. PTT Button | 12. SOS Button | 13. Photo Button | 14. Audio Button | 15. Audio Out/In & Sim Card Slot | 16. IR / White LED Button | 17 Power Button | 18. Power LED/ Charging LED/ Platform LED | 19.Magnet Mount / Type C
Parameters for for NVS4-T live streaming Body Camera
| RECORDING |
|
| Video Resolution |
1440P(30FPS)/1296P(30 FPS)/ 1920x1080P(30 FPS)/ 1280x720P(30 FPS)/ 848×480(30 FPS) |
| Video Format |
MP4 with H.264/ H.265 |
| Live Video |
Support 1280x720P (1M/2M/3M) |
| Recording Angle |
Wide Angle 140 degrees |
| Audio |
High Quality Built-in Microphone. |
| Water Mark |
User ID 6 digits, Device ID 7digits Time and date Stamp Embedded into Video. add logo to video with user (optional) |
| Record Button |
TPU raw material button: Front Circular Big Button ( One-click quick to record ) |
| Other Button |
TPU raw material button: PTT Button, SOS Button, Audio Button, Photo Button, Power Button, IR Button, Left+Right +Confirm+Back Button |
| Video Duration |
10 mins, 20 mins, 30 mins |
| Recording Time |
Above 17 hours at 1080P (4G&WiFi off) |
| Pre-Record/Post Record |
Pre-Record: 10s/20s/30s/60s/120s, Post Record: 30s / 60s |
| Activation prompt |
Vibrator & Speaker & LED Indicators |
| PHOTOGRAPH |
|
| Camera Format |
JPEG |
| Snap Shot |
Capture Photos During Video Recording |
| Photo Resolution |
JPEG. 48M/32M/21M/16M/12M/10M/8M/5M Megapixels |
| BATTERY |
|
| Type |
Built-in 4400mah battery |
| Charging Time |
300 minutes |
| Wireless |
|
| WiFi |
Support (RTSP / RTMP / Lordcam APP / CMSV platform) |
| Bluetooth |
BLE 4.0 （Support Holster trigger to activate camera to record video） |
| 4G Band |
LTE-FDD:B1/B3/B5/B7/B8/B20/B28 |
| LTE-TDD:B38/B40/B41 |
| QRcode Scanning |
Support, scan to change device ID and police ID |
| OTHERS |
|
| Display |
High resolution 2inch LCD (480×360 Pixels) |
| Storage Capacity |
32G/64G/128G/256GB |
| IR Light |
2PCS 850nm Large Infrared LED, |
| Automatic/manual Control |
Support, Range 10M |
| White LED |
Support |
| SOS LED |
Red and Blue LED, Alarm to CMSV and automatically record on camera with Tag video |
| Speaker |
Waterproof and High-power Speaker |
| Waterproof |
IP67 |
| Clip |
High Quality Metal Clip with 360° Rotation |
| Magnetic Connector |
Support |
| Auido -in/out |
Support 3.5mm Earphone |
| Password Protection |
Requires Password to Access to Video |
| Dimensions |
85×56.8×27.9mm |
| Weight |
155 Grams |
| Working Temperature |
-20C° ~ 65C° |
| Storage temperature |
-20C° ~ 65C° |
| Video Encryption |
Support AES256 |
| GPS |
GPS |
| 4G Software Platform |
CMSV (Real Time Monitoring/ SOS/ GPS Tracking/ PTT Intercom / command camera to record video&audio / download the camera video / group intercom) |
| ACCESSORIES |
|
| Standard Accessories |
USB cable, Charger, Single Dock, Crocodile Clip, Manual |
| Other Accessories |
Magnet Mount, Lock Clip, Car Mount, Harness, Earphone, Bluetooth holster sensor |
Standard accessories for NVS4-T live streaming Body Camera
USB cable, Charger, Single Dock, Crocodile Clip, Manual
Optional accessories for NVS4-T live streaming Body Camera
