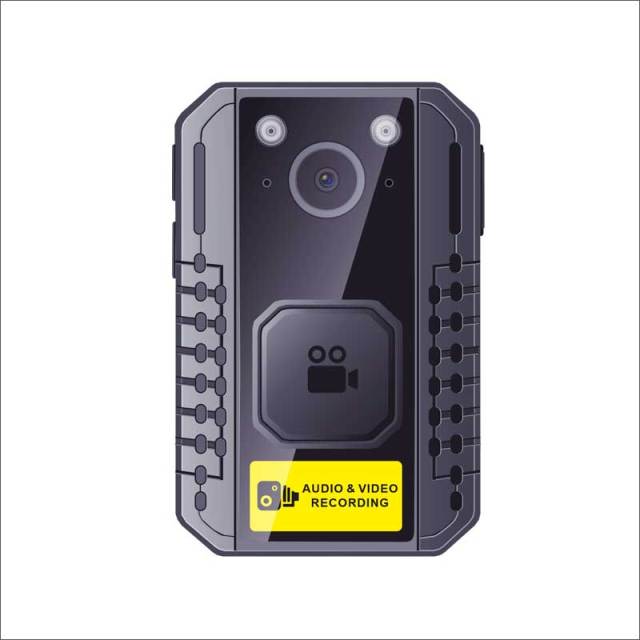

The NVS4-Q is a no screen stand-alone Body-Worn Cameras with a simple and easy-to-use design. The large record button and LED indicator light make it easier to operate and identify the camera status. IP67 waterproof level, The 4400mAh large battery records uninterruptedly and supports remote communication modules to transmit real-time video. The body camera also supports H.265 and MP4 formats. The design size is small and portable: 83×55×30mm, which fully meets the needs of users.
1. 850nm Infrared | 2. Microphones x 1 | 3. Camera Lens | 4. Record Button With LED Ring | 5. Reset button | 6. Clip Fixing Slot | 7. Photo Button | 8. Power button | 9. USB port / Nano SIM card for 4G (Optional) | 10. LED indicators for battery life | 11. Power LED/Charging LED/ Platform LED | 12. Speaker | 13. Pogo Pin Connectors | 14. Serial Numbers
Parameters for NVS4-Q stand-alone body camera
| RECORDING | |
| Video Resolution | 1440P(30 FPS)/ 1296P(30 FPS)/ 1920x1080P(30 FPS)/ 1280x720P(30 FPS)/ 848×480(30 FPS) |
| Screen | No Screen |
| Video Format | MP4 with H.264/ H.265 |
| Recording Angle | Wide Angle 140 degrees |
| Audio | High Quality Built-in Dual Microphone. |
| Water Mark | User ID, Time and date Stamp Embedded into Video. |
| Record LED | Front Button |
| Video Duration | 10 mins, 20 mins, 30 mins |
| Recording Time | Above 15 hours at 1080P (4G off) |
| Pre-Record/Post Record | Pre-Record: 120s, Post Record: 60s |
| Activation prompt | Vibrator & Speaker & LED Indicators |
| PHOTOGRAPH | |
| Camera Format | JPEG |
| Snap Shot | Capture Photos During Video Recording |
| Photo Resolution | 38 Megapixels JPEG |
| BATTERY | |
| Type | Built-in 4400mAH Lithium- (LiCoO 2) |
| Charging Time | 240 minutes |
| Battery Level | Blue LED Indicators with 4 Levels (25%~50%~75%~100%) |
| Wireless | |
| WiFi | AP 2.4GHz, STA (optional) |
| Bluetooth | Support |
| OTHERS | |
| Storage Capacity | 32G/64G/128G/256GB/512GB |
| IR Light | 2PCS 850nm Large Infrared LED |
| Auto IR Control | Support |
| Waterproof | IP67 |
| Clip | High Quality Metal Clip with 360° Rotation |
| Password Protection | Requires Password to Access to Video |
| Dimensions | 83×55×30mm |
| Weight | 145 Grams |
| Working Temperature | -20C° ~ 65C° |
| Storage temperature | -20C° ~ 65C° |
| Video Encryption | Support |
| GPS ( optional ) | GPS and/or Glonass |
| 4G Software Platform | Real Time Monitoring/ SOS/ GPS Tracking/ Intercom |
| ACCESSORIES | |
| Standard Accessories | USB cable, Charger, Driver CD, Single Dock, Crocodile Clip, Manual |
| Other Accessories | Magnet Mount, Lock Clip, Car Mount, Harness |
