CMSV Visual Command Platform Brief Description for live streaming military tactical helmet camera
CMSV Visual Command Platform supports physical and cloud server installation. When you have a server, you can install CMSV Server Software on your server and access it through the public IP to view the miliatry tactical helmet camera's image from anywhere in the world. The web version manages and creates miliatry tactical helmet camera and departmental permissions. The PC client can view live streaming scheduling, PTT two-way intercom, GPS real-time location positioning, remotely command the camera to record audio and video, and record videos to your command computer at a scheduled time to save. Remotely access miliatry tactical helmet camera images, audio and video and manually download the desired data. Everything is managed and created by you, and it is completely self-managed.
4G LTE Communication for S29D Live Streaming Military Tactical Helmet camera
The S29D live streaming miliatry tactical helmet camera supports standard Nano SIM Card. After inserting the 4G card, the miliatry tactical helmet camera will get 4G communication, and CMSV6 will show that the miliatry tactical helmet camera is online. At this time, you can remotely view 4G live streaming, and perform corresponding functions as CMSV Visual Command Platform Brief description.
Wi-Fi (AP/STA/RTSP/RTMP) Mode for S29D Live Streaming Military Tactical Helmet cameraThe S29D live streaming miliatry tactical helmet camera supports WIFI multi-protocol connection to view live streaming:
AP Mode: You can use cam manager software to set WIFI to AP mode to view RTSP live streaming via VLC or mobile APP.
STA Mode: Support RTSP LAN IP address to view live streaming, and CMSV Visual Command Platform to view live streaming and try out the features of CMSV Visual Command Platform Brief description. If you have a RTMP server, please set the camera to your server IP to view your live streaming.
Built-in GPS Module Tracking for S29D Live Streaming Military Tactical Helmet camera
The S29D live streaming miliatry tactical helmet camera has a built-in global high-precision GPS module. When the miliatry tactical helmet camera is connected to a 4G or WIFI network, the miliatry tactical helmet camera will receive a GPS signal. You can check the real-time location and schedule work at any time through the CMSV Visual Command Platform. After your miliatry tactical helmet camera records the video, you can also play back the video path and GPS coordinates through our dedicated GPS player.
PTT Intercom Communication for S29D Live Streaming Military Tactical Helmet camera
When the S29D live streaming miliatry tactical helmet camera is connected to the 4G or WIFI network, the miliatry tactical helmet camera can communicate with the CMSV Visual Command Platform. S29D supports two-way intercom, fully meeting the needs of all dispatch work.
SOS Alarming To CMSV6 for S29D Live Streaming Military Tactical Helmet camera
The S29D live streaming miliatry tactical helmet camera supports SOS communication and CMSV6. When law enforcement officers encounter an emergency at the scene, they can try to press the SOS button to alert the command platform, and the command center platform will receive an SOS alarm prompt.
Video/Photograph Recording for S29D Live Streaming Military Tactical Helmet camera
The S29D live streaming miliatry tactical helmet camera supports video and photo functions, and has a built-in powerful image processing module. You only need to press the corresponding record button to record different types of data. The video supports 2K resolution (1440P, 1296P, 1080P, 720P, 480P), Let all law enforcement workers and users experience better recording effects.
The S29D live streaming miliatry tactical helmet camera supports video AES256 encryption technology. When you set the camera encryption, the recorded video will be protected by AES256 encryption. No one can play or edit the video. When you want to play the video, please use our dedicated audio and video player to perfectly solve the problem of video tampering.
Low Power Consumption, More Battery Life for S29D Live Streaming Military Tactical Helmet camera
The S29D live streaming miliatry tactical helmet camera built-in 4400mAh high capacity ion battery, without changing the battery design, super long standby, super large capacity battery, continuous 15hours of video, to ensure that law enforcement responsibility for a long time.

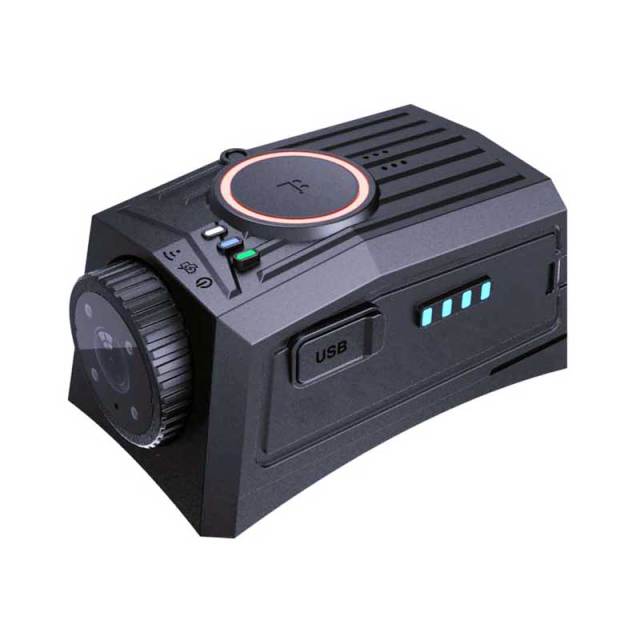

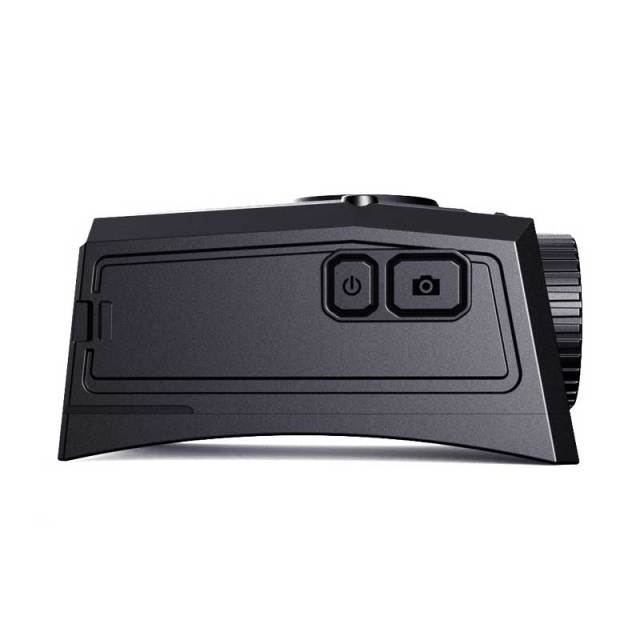

Button Function for S29D Live Streaming Military Tactical Helmet camera
1. Rotatable Lens Cover | 2. Camera Lens | 3. IR LED x 4 | 4. Microphone | 5. LED Indicators for Recording | 6. Speaker | 7. Record / SOS Button | 8. Reset Button | 9. Power LED/ Charging LED/ WiFi LED | 10.M6 Screw Nut | 11. Pogo Pin Connector | 12. LED indicators for Battery Life | 13. Mini USB/ Nano SIM Card | 14. Photo Button | 15. Power Button
Parameters for S29D Live Streaming Military Tactical Helmet camera
| RECORDING |
| Video Resolution |
1440P(30 FPS)/ 1296P(30 FPS)/ 1920x1080P(30 FPS)/ 1280x720P(30 FPS)/ 848×480(30 FPS) |
| Screen |
No Screen |
| Video Format |
MP4 with H.264/ H.265 |
| Recording Angle |
Wide Angle 140 degrees |
| Audio |
High Quality Built-in Dual Microphone. |
| Water Mark |
User ID, Time and date Stamp Embedded into Video. |
| Record LED |
Front Button with LED Indicator |
| Video Duration |
10 mins, 20 mins, 30 mins |
| Recording Time |
Above 15 hours at 1080P (4G off) |
| Pre-Record/Post Record |
Pre-Record:120s, Post-Record: 60s |
| Activation prompt |
Vibrator & Speaker & LED Indicators |
| PHOTOGRAPH |
| Camera Format |
JPEG |
| Snap Shot |
Capture Photos During Video Recording |
| Photo Resolution |
38 Megapixels JPEG |
| BATTERY |
| Type |
Built-in recyclable charge 4400mAH Lithium- (LiCoO 2) |
| Charging Time |
300 minutes ( camera fast charging with Type-c port, dock fast charging with mini USB port ) |
| Battery Level |
Blue LED Indicators with 4 Levels (25%~50%~75%~100%) |
| Wireless |
| WiFi |
STA 2.4GHz |
| 4G Bands (Optional) |
LTE-FDD:B1/B3/B5/B7/B8/B20/B28
LTE-TDD:B38/B40/B41 |
| Bluetooth |
Support BT holster sensor （BT holster sensor optional - When the gun is pulled, it will activate body camera to record video automatically） |
| OTHERS |
| Storage Capacity |
32G/64G/128G/256GB/512GB |
| IR Light |
4PCS 850nm Infrared LED with Wide Angle |
| Auto IR Control |
Support |
| Waterproof |
IP66 |
| Password Protection |
Requires Password to Access to Video |
| Dimensions |
95 mm *50 mm *58mm |
| Weight |
160 Grams |
| Working Temperature |
-20C° ~ 65C° |
| Storage temperature |
-20C° ~ 65C° |
| Video Encryption |
Support |
| GPS |
GPS and/or Glonass |
| 4G Software Platform |
Real Time Monitoring/ SOS/ GPS Tracking/ Intercom |
| ACCESSORIES |
| Standard Accessories |
helmet Camera | USB Charger | USB Charging Cable | Velcro Mount | User Manual | dock |
| Other Accessories ( optional ) |
BT holster sensor, car mount, tripod, Including 1/4 nut accessories |
| Docking station and Digital Evidence Management syetem (DEMS)- optional |
| 10 / 20ports docking station + DEMS |
It can manage up to 10/20 cameras to upload data to management center PC or server software, and supports charging for all cameras at the same time. |
Standard accessories for S29D Live Streaming Military Tactical Helmet camera
helmet Camera | USB Charger | USB Charging Cable | Velcro Mount | User Manual | dock
Optional accessories for S29D Live Streaming Military Tactical Helmet camera
